Robotic Gripper Hand

Automate manual work in combination with collaborative robots

ASPINA electric robot hand is an end-effector (gripper) for cooperative robots. It features a large stroke, adjustable gripping force, and a hollow structure, and the fine gripping force adjustment unique to an electric hand provides a firm and gentle grip, just like a human hand. The automatic gripping function automatically adjusts to grip workpieces of different shapes and hardness, making it possible to handle multiple workpieces with a single machine. We offer a 3-jaw model for round workpieces and a 2-jaw model for square workpieces, and we can meet your "gripping" requirements through workpiece gripping tests and custom jaw design services.

Robotic gripperARH-305B

Product name
Robotic gripper ARH305B
Maximum opened diameter
Φ143mm
Gripping force
5N
Maximum workpiece weight (70mm distance)
50g
Maximum workpiece weight (30mm distance)
300g
Dimensions
φ60 x 155mm
Weight
640g

Robotic gripperARH-350A

Product name
Robotic gripper ARH350A
Maximum opened diameter
Φ143mm
Gripping force
50N
Maximum workpiece weight (70mm distance)
500g
Maximum workpiece weight (30mm distance)
3000g
Dimensions
φ60 x 155mm
Weight
640g

Compliant robot manufactures

Universal Robots

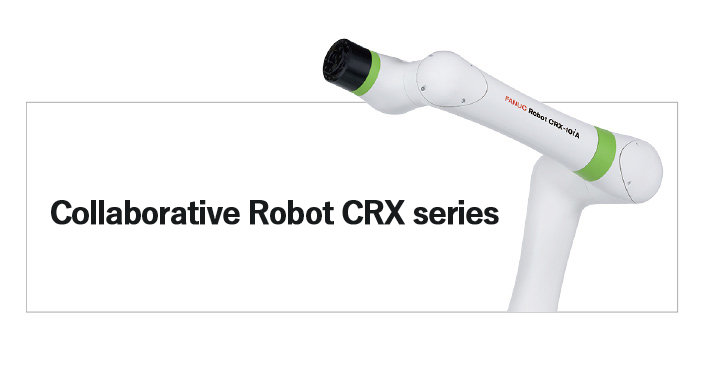

FANUC

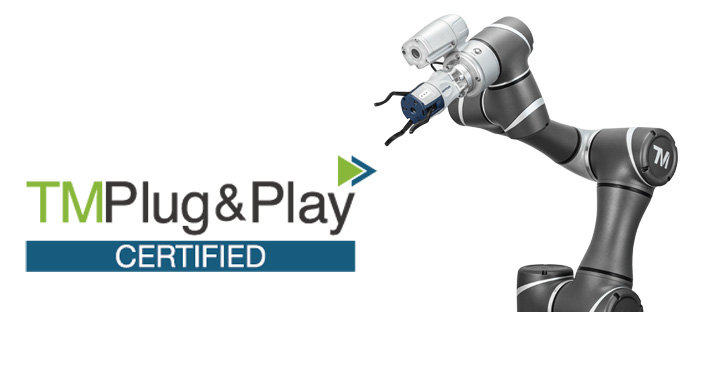

TECHMAN ROBOT

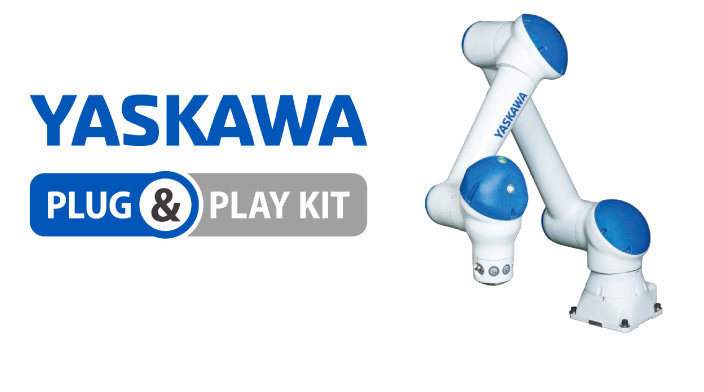

YASKAWA
