Brushless hollow motors with low profile

Beyond co-creation - compact products that use the cavity

High efficiency & torque brushless DC motors with ASPINA core technology enable compact, lightweight, and thin designs. It can be used for miniaturization of a wide range of products, from industrial to service robots.

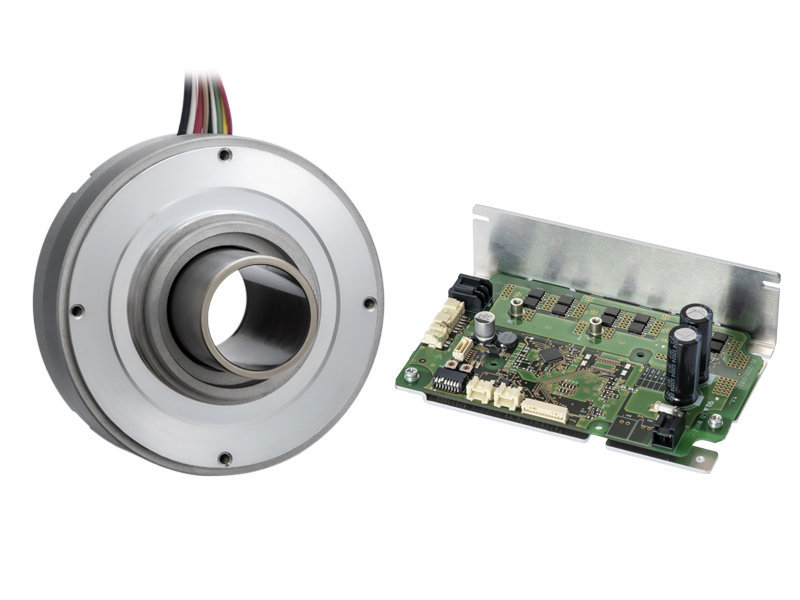

In addition, we can provide drive units suitable for power supplies for robots by proposing dedicated drivers and packages.

Product Information

Our Low-profile in-wheel motors series are here for your needs. If you want to add them into service or industrial robots, we are there for you. Take a look at the variety of our product!

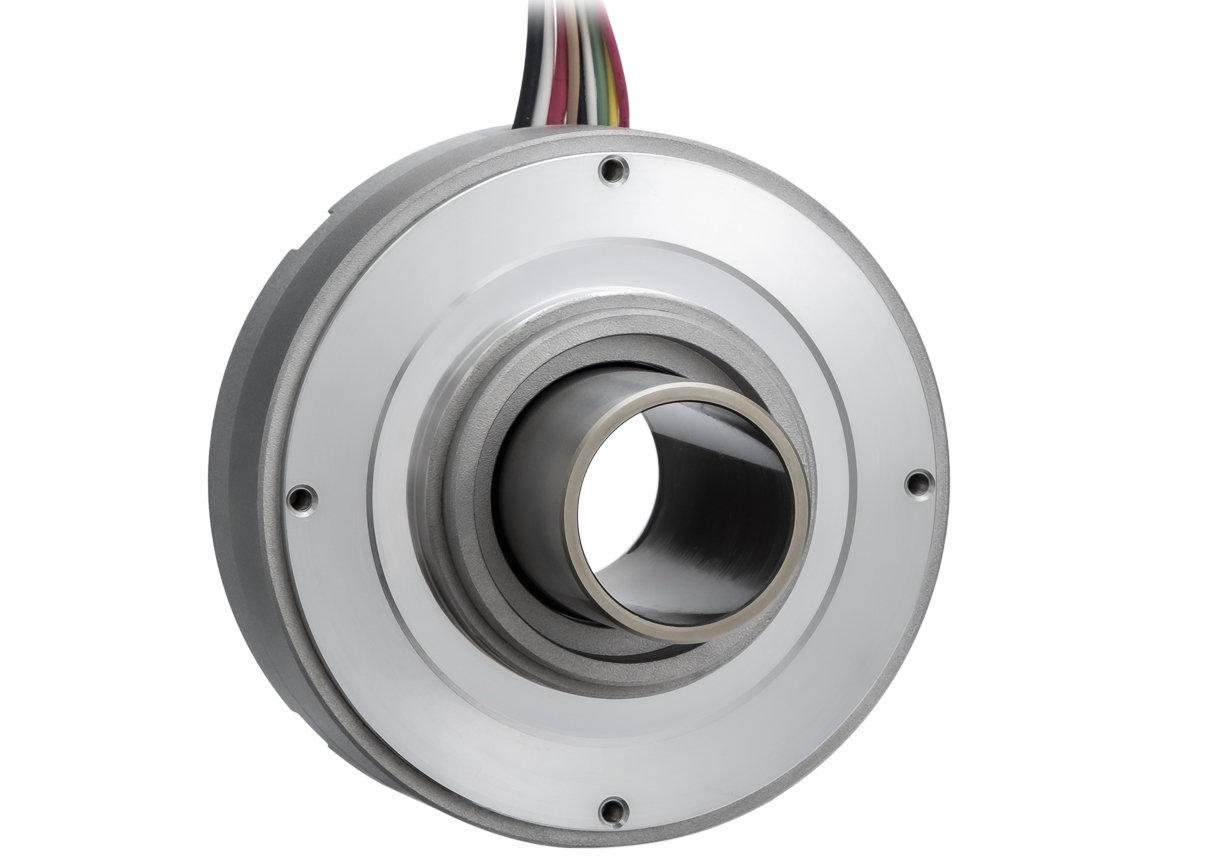

Low-profile hollow brushless motorsCBA-50JHWC

Power: 50W
Capacity: 0.19N・m
Speed: 2,500r/min
Voltage: DC48V
Size (motor diameter x thickness): Φ85 x27.6mm
Weight: 500g

Details

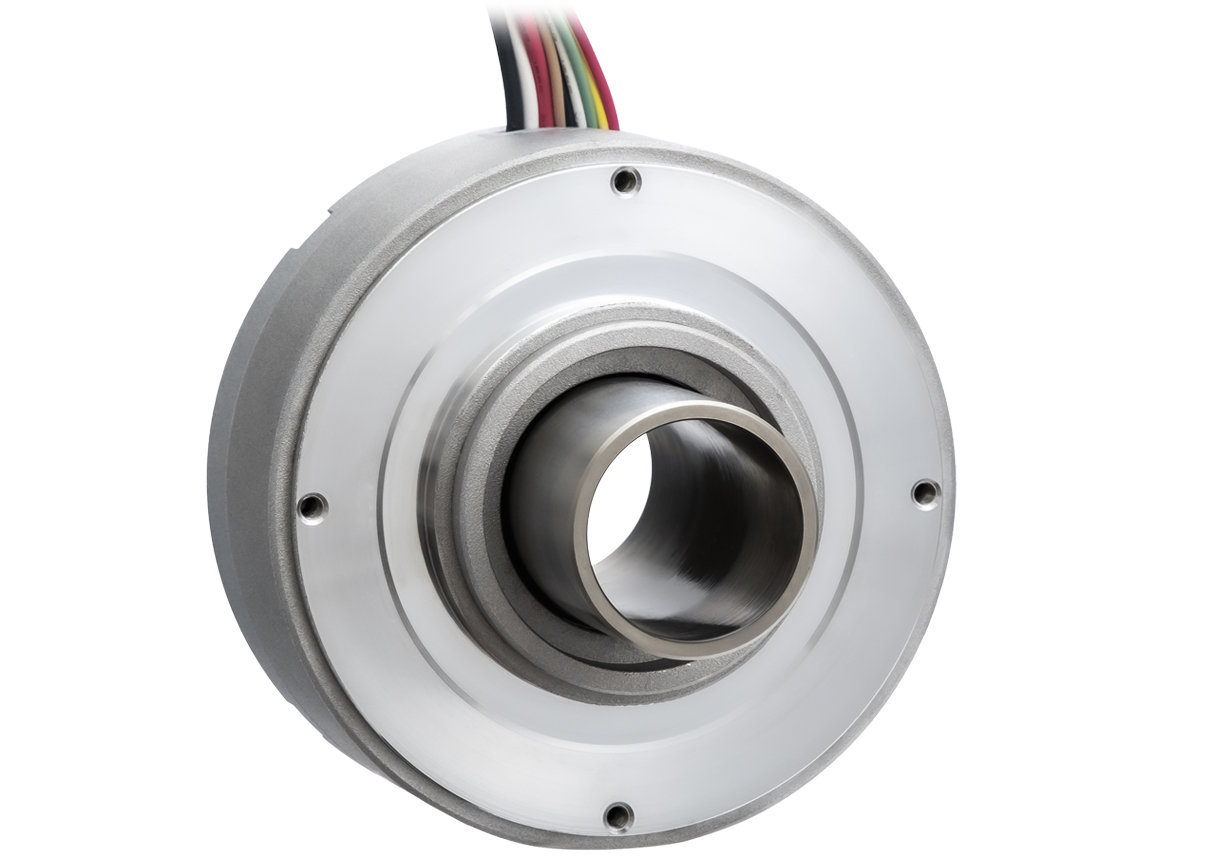

Low-profile hollow brushless motorsCBA-100JHWC

Power: 100W
Capacity: 0.38N・m
Speed: 2,500r/min
Voltage: DC48V
Size (motor diameter x thickness): Φ85 x 33.9mm
Weight: 650g

Details

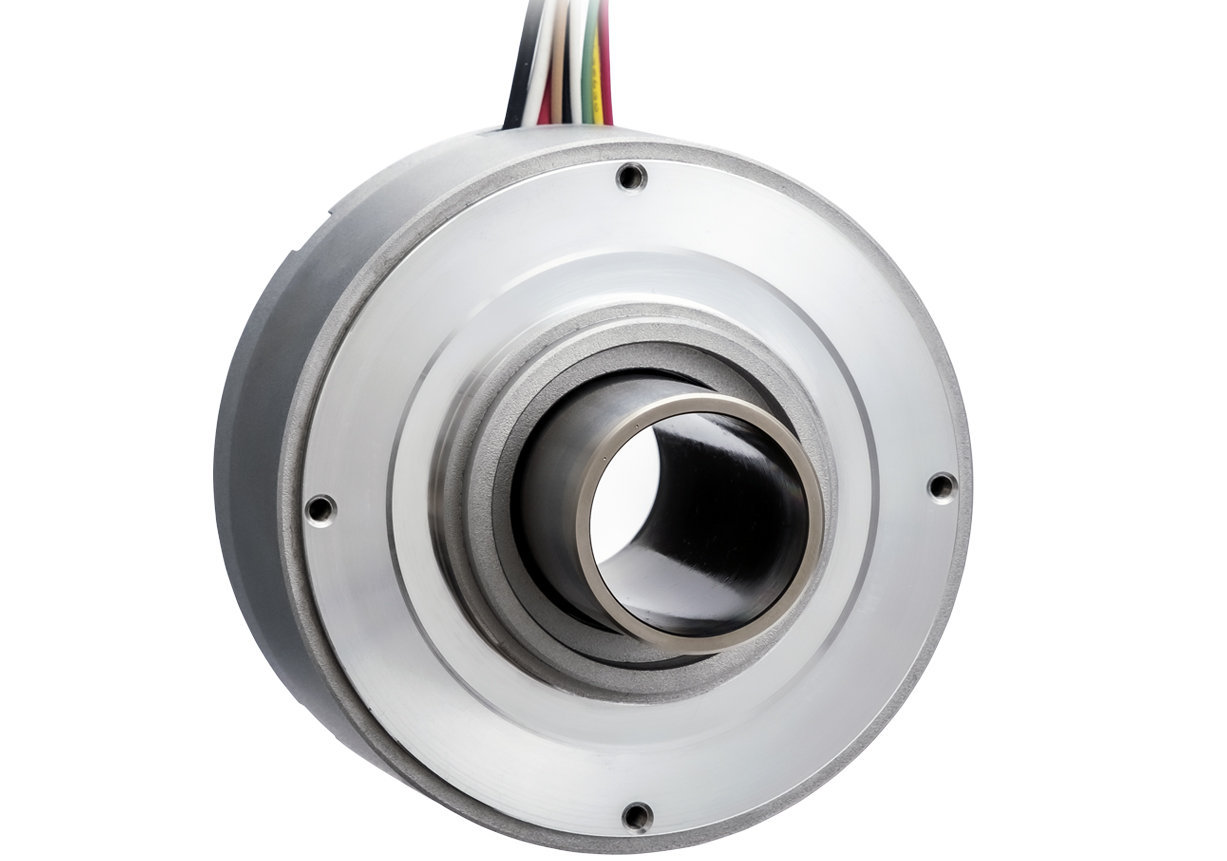

Low-profile hollow brushless motorsCBA-150JHWC

Power: 150W
Capacity: 0.57N・m
Speed: 2,500r/min
Voltage: DC48V
Size (motor diameter x thickness): Φ85 x 40.2mm
Weight: 800g

Details

Where it can be used

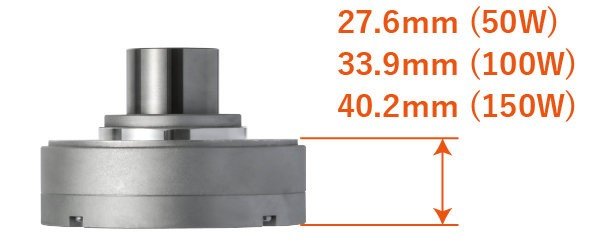

Thinner profil

Industry's top-class low profile, approximately 50% thinner than our conventional brushless motors.
Contributes to slimmer joints

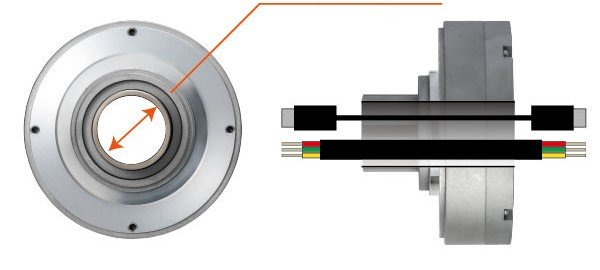

Large "hollow structure"

The large hollow structure (hollow diameter φ25.4) can be used to pass through cables and air tubes.
Contributes to greater design freedom in robot development

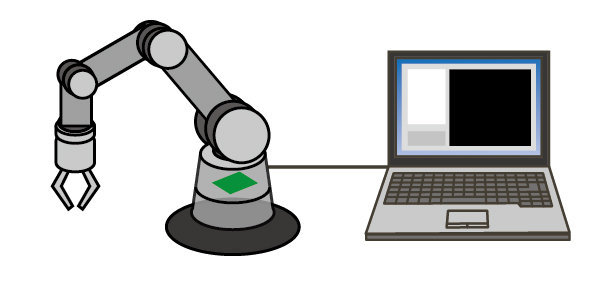

ROS support

ROS (Robot Operating System) is a software package to make the thin hollow brushless motor compatible with ROS is being prepared for release.
